SCODEV, scooping device

for non-amphibious conventional aircrafts

This video shows a helicopter with a hose and a scooping device carrying out an aerial test at 90 knots and a hydrodynamic test at 30 knots per. After two meters a T-section is mounted in the hose to eject the water sideways.



This prototype is successfully tested in November 2019 with a heavy helicopter Erickson Aircrane S-64.

Article about SCODEV in JANE’S , the world’s most famous Defence magazine

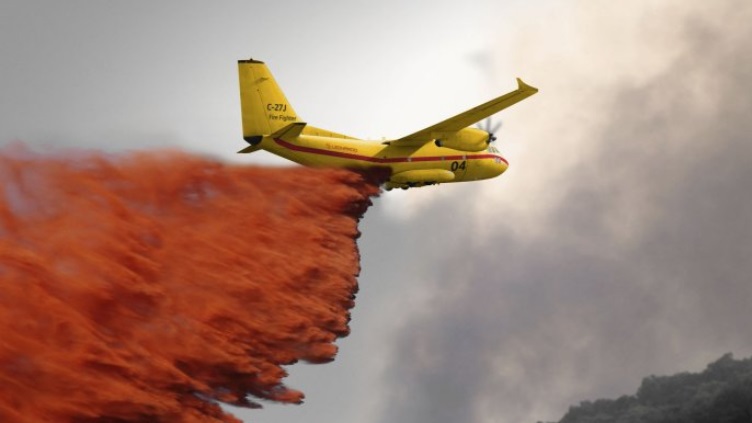

Italy’s Leonardo has been promoting the C-27J in a newly revised firefighting configuration. The new roll-on, roll-off fire attack system (FAS) has been made by Simplex Aerospace in collaboration with the European SCODEV Consortium. A water scooping device, developed by SCODEV, will allow the aircraft to refill its firefighting tanks without the need to return to base for refilling.

According to Scodev International, the SCODEV-system enables the C-27J to scoop water flying at an altitude of 35 to 50 feet, and drop onto fires up to five times per hour. The system can deliver 10,600 litres of water onto a fire, and an additional 568 litres of foam retardant can be carried in a separate tank. Total fill time for the water tank using the SCODEV system takes between 30 and 40 seconds, with evacuation in less than seven seconds. The FAS can be installed or removed in 60–90 minutes via the rear loading ramp, with the water or foam being dispersed via “S” ducts fitted into the aircraft’s paratrooper doors at the rear of the aircraft.

The addition of the system is an option that can be added to the new C-27J baseline configuration that incorporates new avionics systems, cockpit control panels, and LED aircraft lights. Existing C-27J operators are able to obtain both the firefighting and new avionics fits as part of a retrofit upgrade package. Leonardo executives told Jane’s that the system has received interest from new and existing customers of the C-27J, particularly in Latin America.

Previous firefighting versions of the C-27J have utilised the Caylym Guardian airdropped reinforced cardboard containers. The Guardian system consists of six 1,000 litre containers filled with water or extinguishing liquid that are dropped from the rear cargo ramp of the aircraft. The containers can be recovered by firefighters but are also biodegradable.

Want to read more? For analysis on this article and access to all our insight content, please enquire about our subscription options at www.janes.com
